Tube Fitting Inspection
Course Objective
This course aims to provide trainees with an understanding of how to identify correct tube placement, spot improper tube fitting installation and tube bending defects, and discuss the significance of leakages and the factors that can lead to them.
Content covered:
- Tube system placement
- Safe Installation and reassembly of Swagelok tube fitting components
- Consequences of mixed fitting components/materials
- Tubing types for specific applications
- Common tube bending defects
- NPT thread installation and the use of thread lubricants and sealants
Target Audience:
Quality Assurance Managers, Plant Managers, Maintenance Managers, Supervisors, Safety Engineers, Inspectors and Procurement
Course details:
| Course length | 1 day |
| Prerequisite | Successful completion of Tube Fitting & Tube Bending Essentials training |

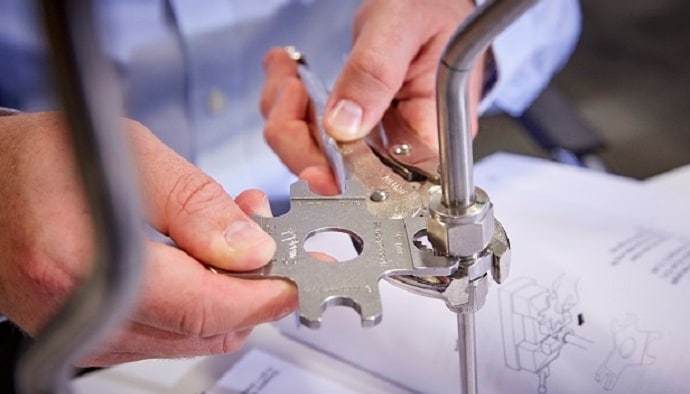

| Course delivery | Theory – Powerpoint slides, complemented with printed handouts Practical – Demonstrate ability to make-up tube fittings and proceed to inspect using Swagelok's inspection gauge |
| Certification | Swagelok Certificate of Completion, plus wallet card |
